Details

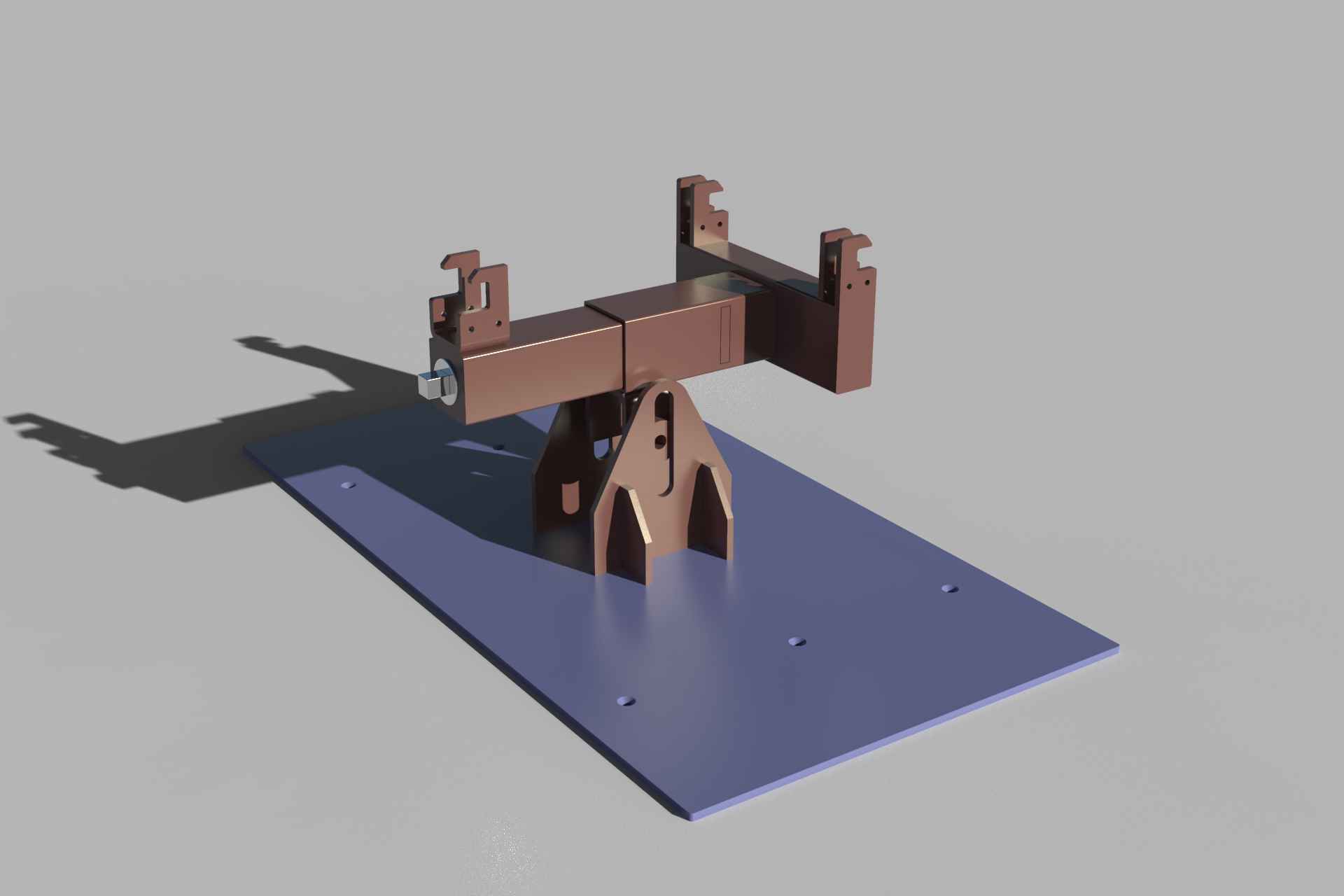

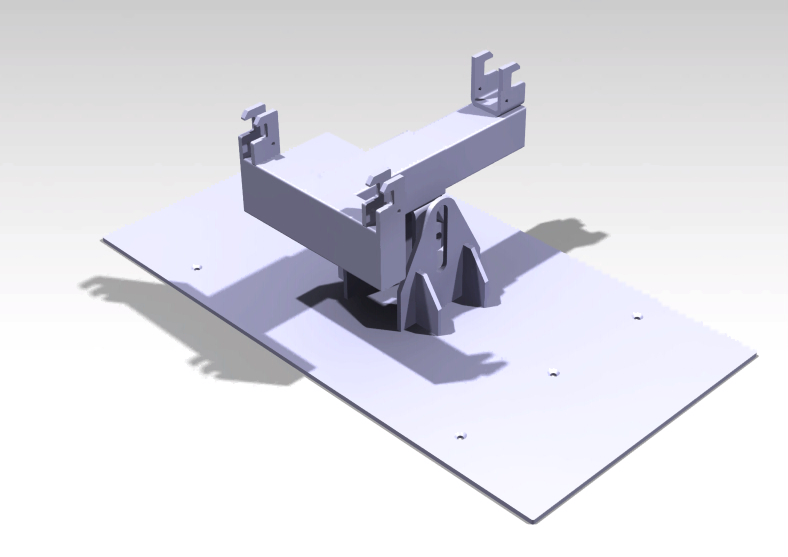

This type of fixture is used to hold the bike which are usually kept in showroom to display the vehicles. These fixtures are usually made up of mild steel. Few types of fixtures are made up of aluminum to make it light weight. The fixtures are either fixed on the ground by using anchoring bolts or are hung on the wall .The vehicle (bike ) rests on the locator points shown in the image attached
Software
CATIA
STEP
Categories
Fixtures
Industrial Design
Keywords
Bike fixture
Fixtures
locator
industrial design
catia
stp
×
The CAD files and renderings posted to this website are created, uploaded and managed by third-party community members. This content and associated text is in no way sponsored by or affiliated with any company, organization, or real-world good that it may purport to portray.
Bike fixture 3
