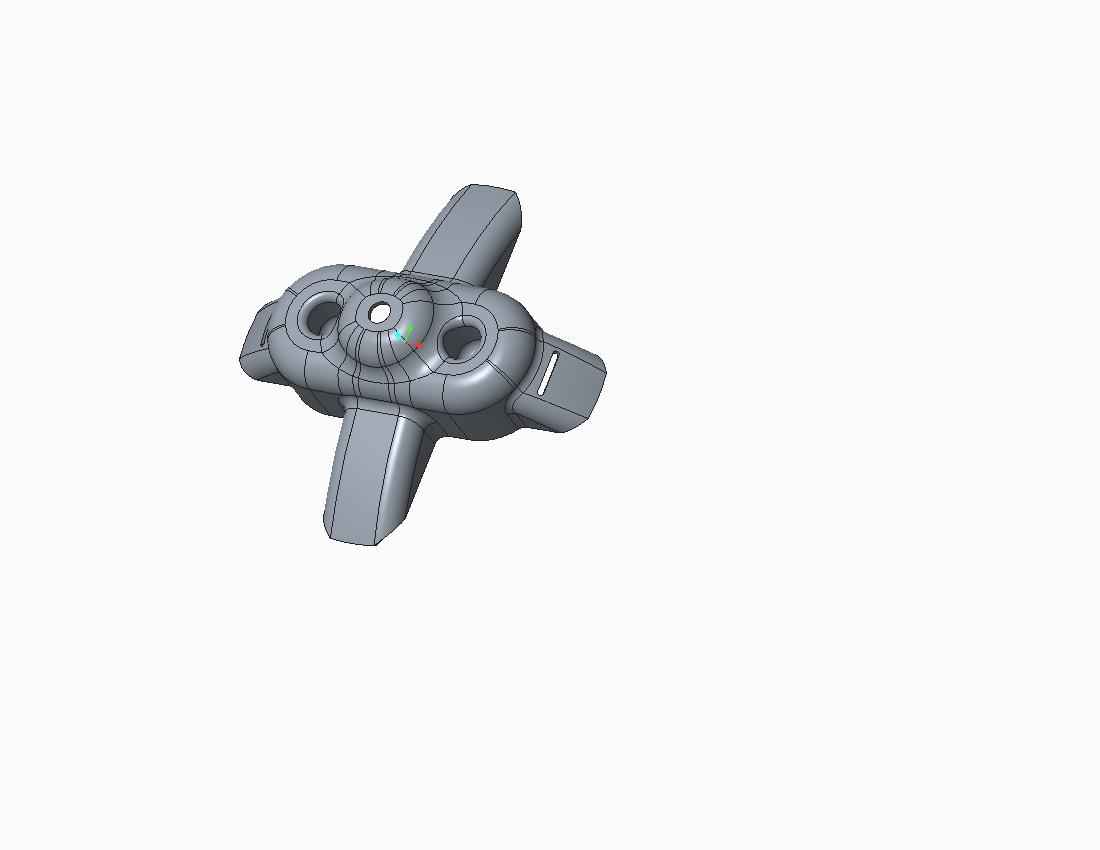

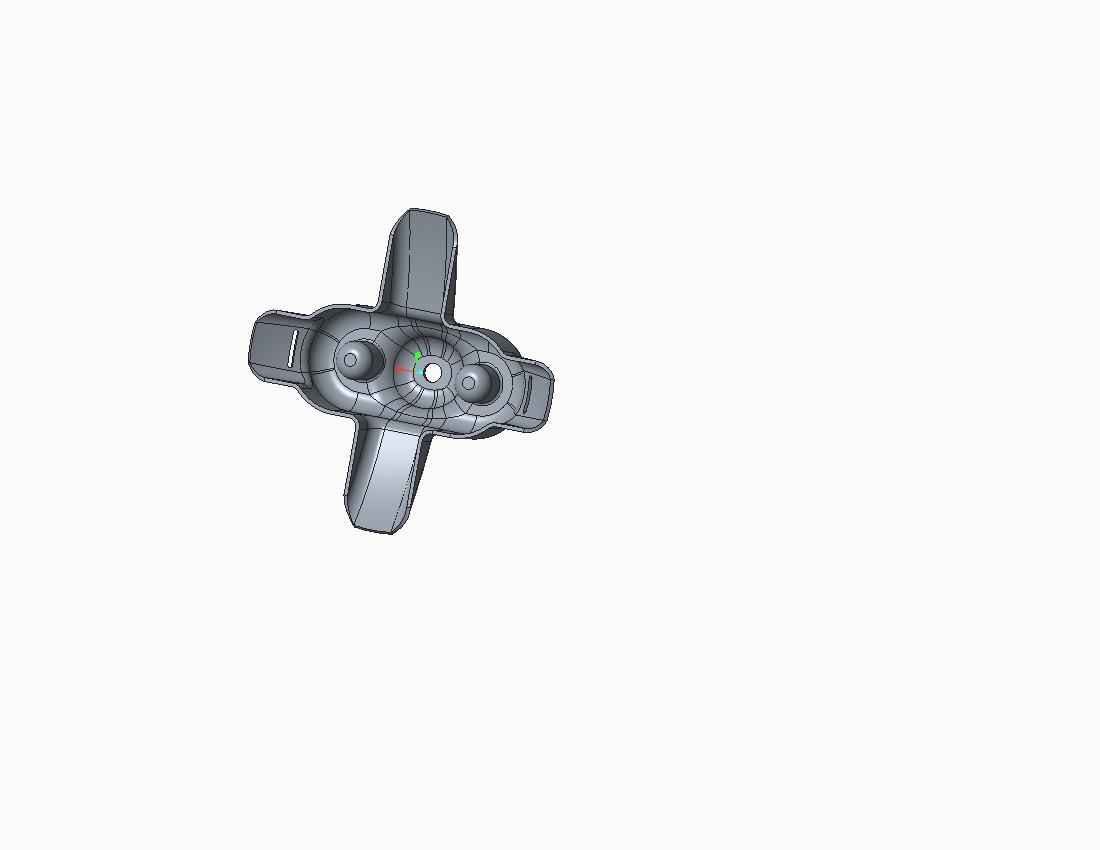

Here is a plastic bracket is drawn in Creo 3.0, using various commands. One should definitely try this as a challenging one and in order to have proper control over command. I had attached its drawing file also for the person who would like to draw this object. I intentionally did not share original part file.
Software
PTC Creo Parametric
