Details

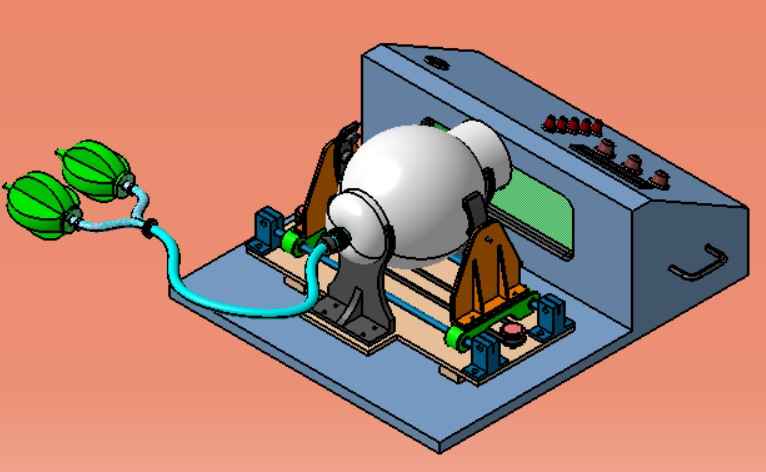

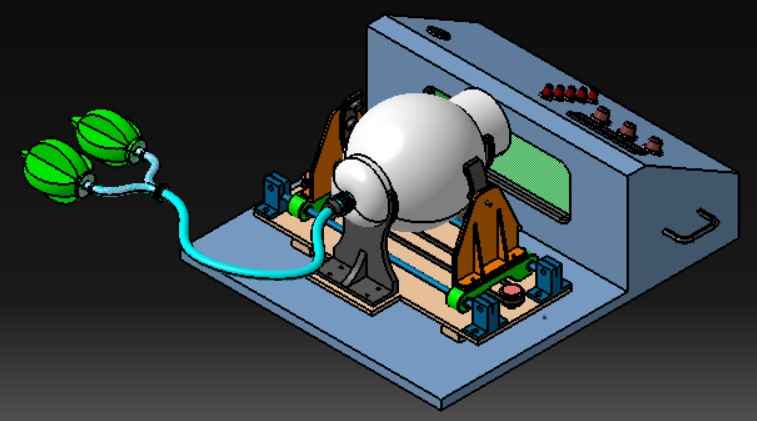

mechanical ventilator works with simple motor connected to the driven pulley to generate the compression pressure(air) to the tube. The outlet air(oxygen) passes through the pipe to self inflating bags. This ventilator can supply oxygen to 5 patients at single stroke.
Software
CATIA
Categories
Medical
Keywords
Emergency ventilation initiative for covid patients
×
The CAD files and renderings posted to this website are created, uploaded and managed by third-party community members. This content and associated text is in no way sponsored by or affiliated with any company, organization, or real-world good that it may purport to portray.
simple mechanical ventilator (prototype)
