Details

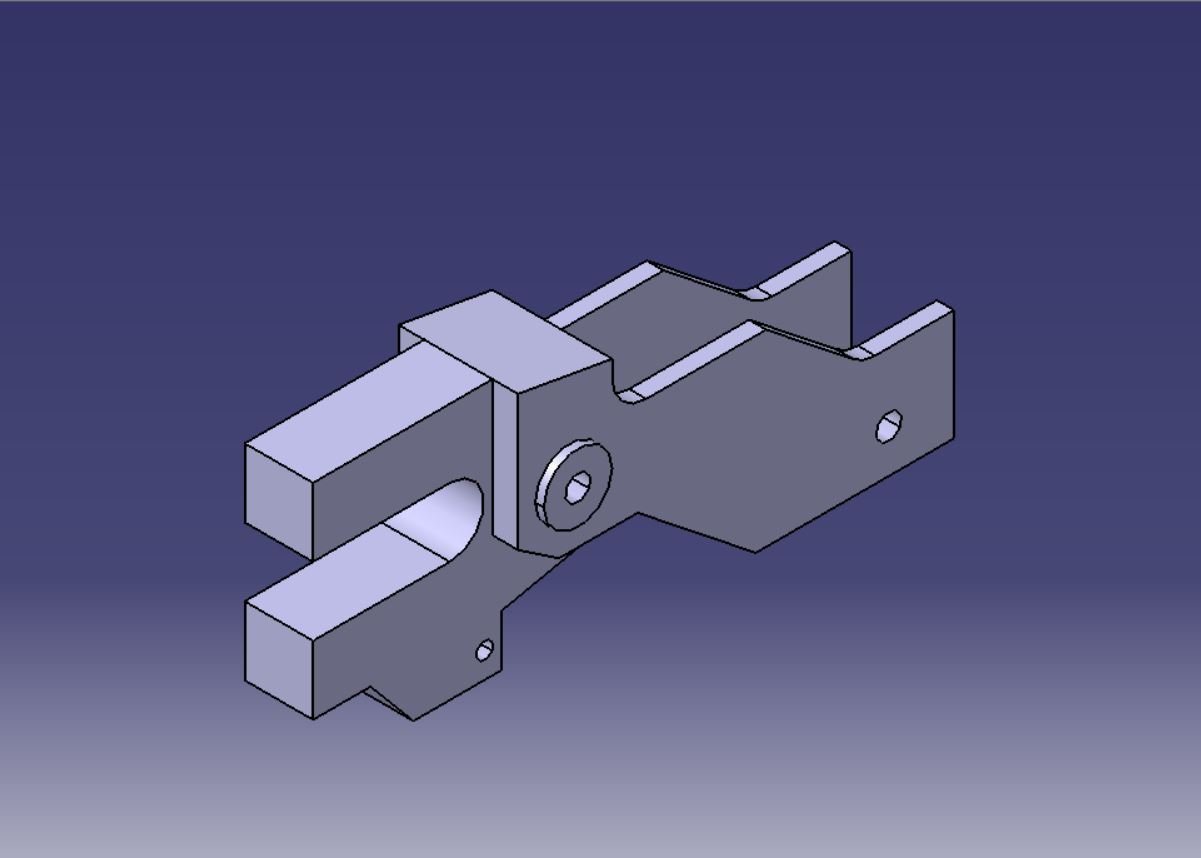

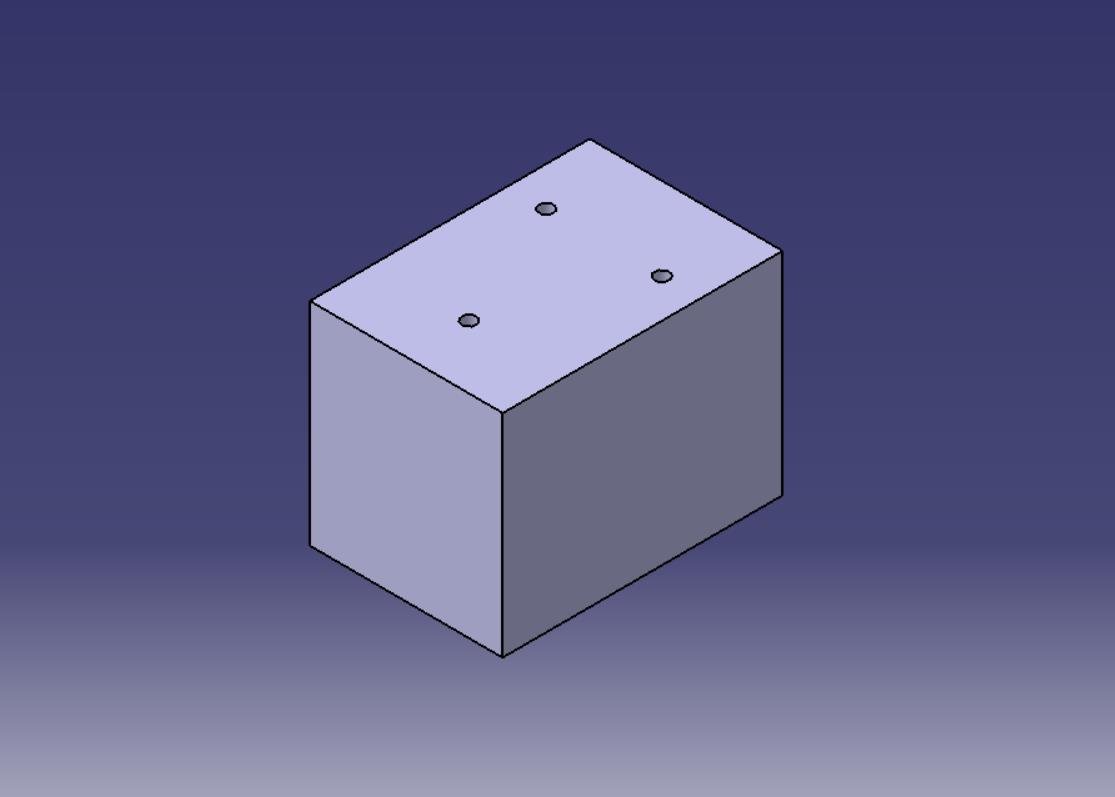

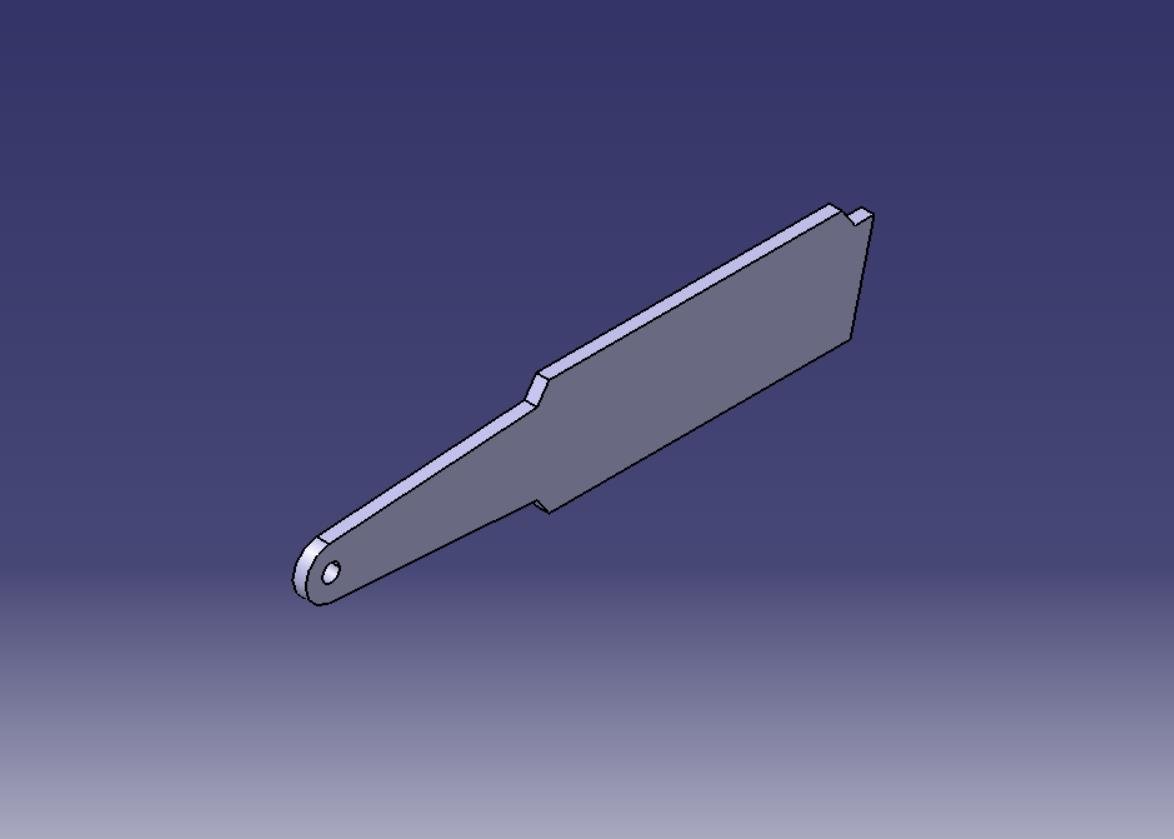

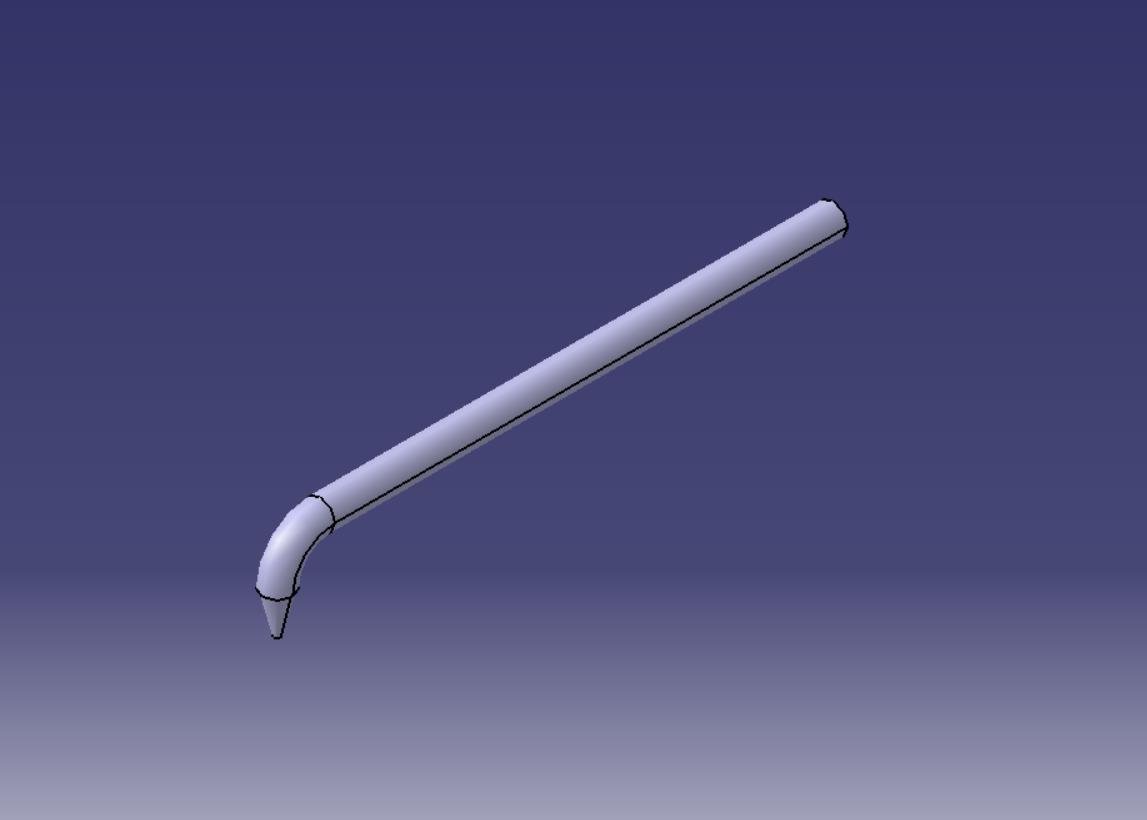

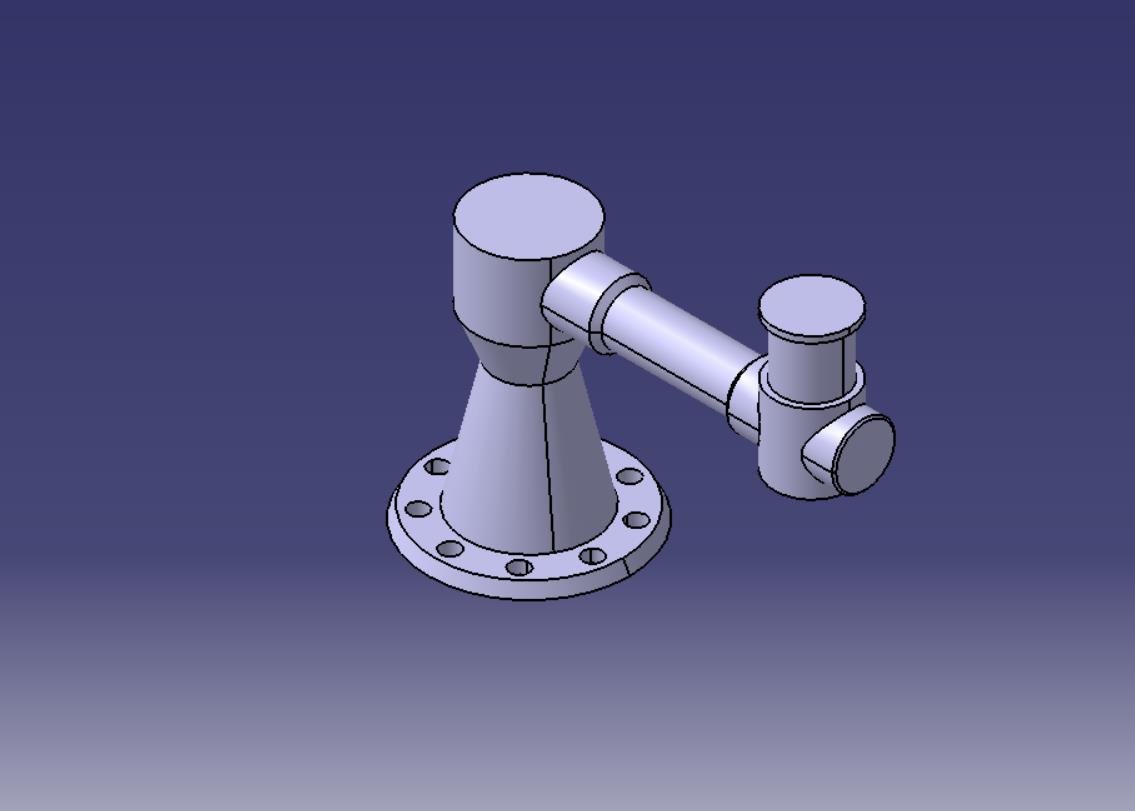

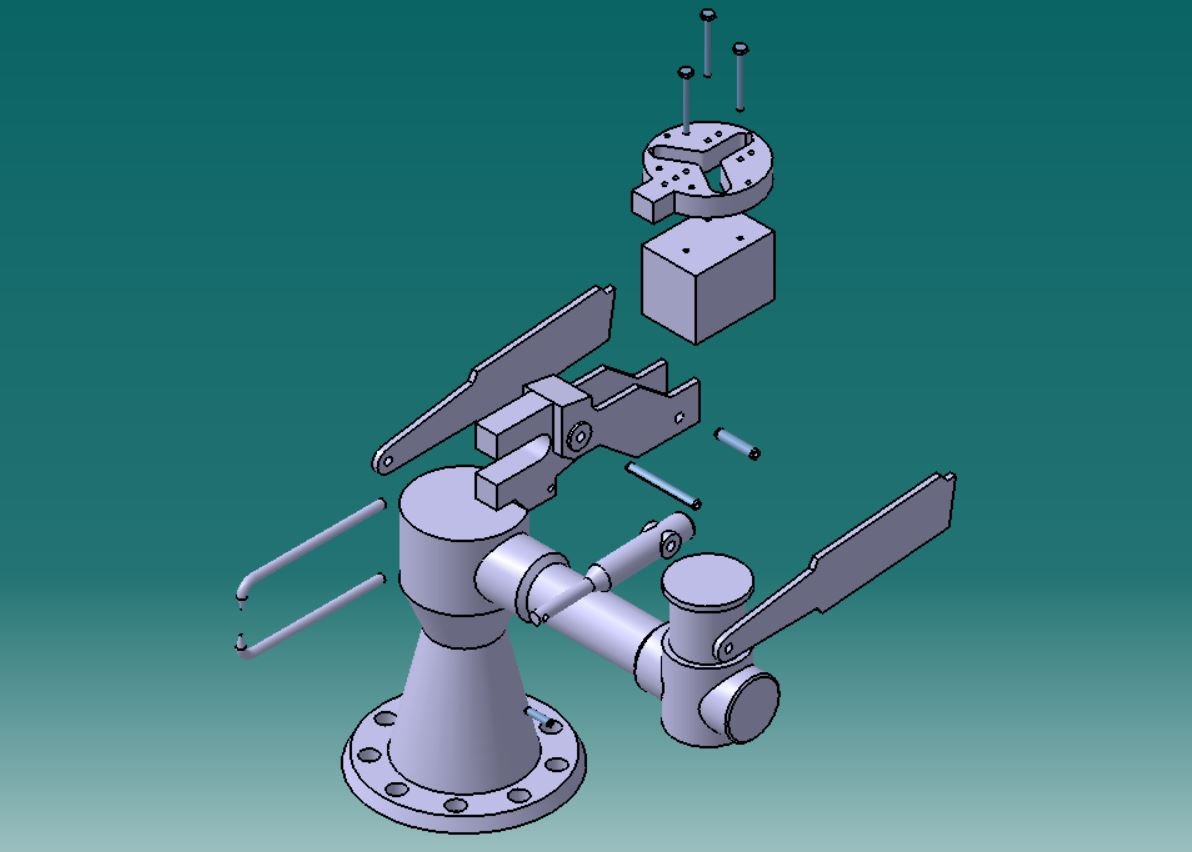

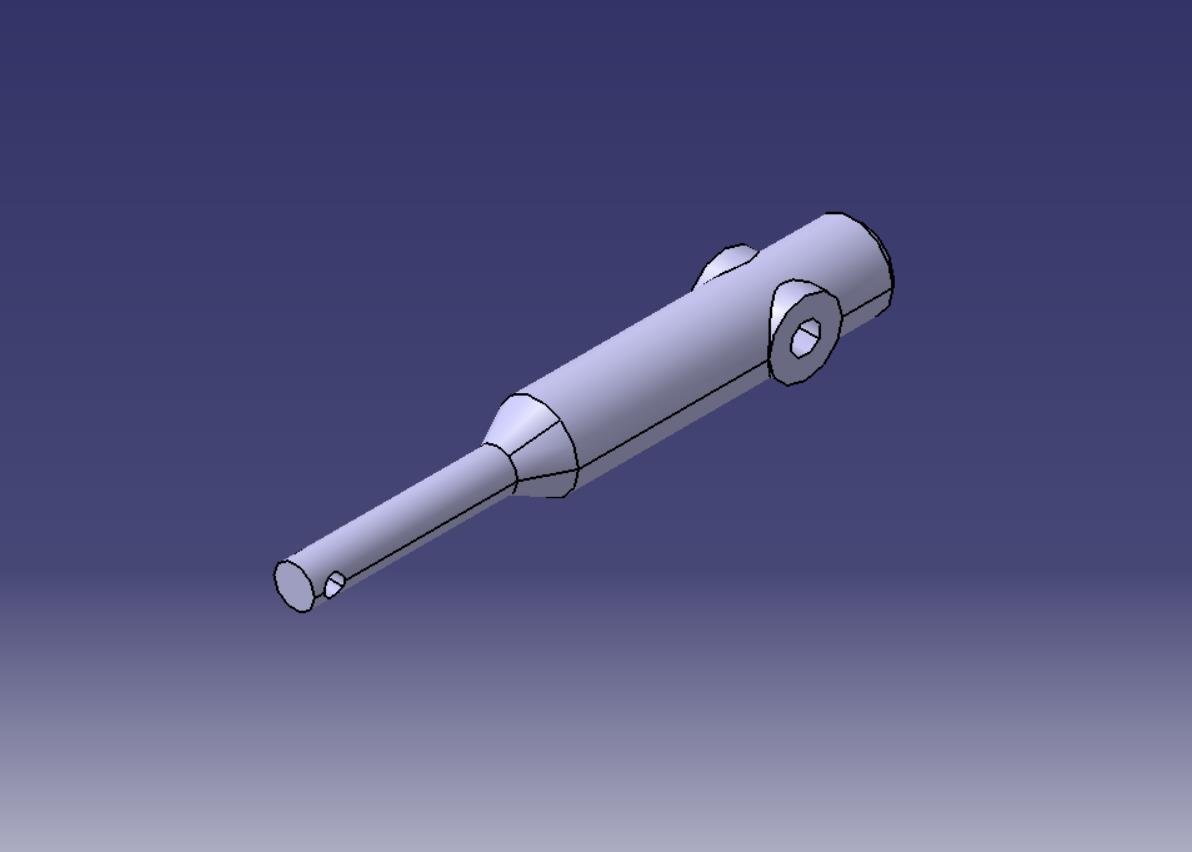

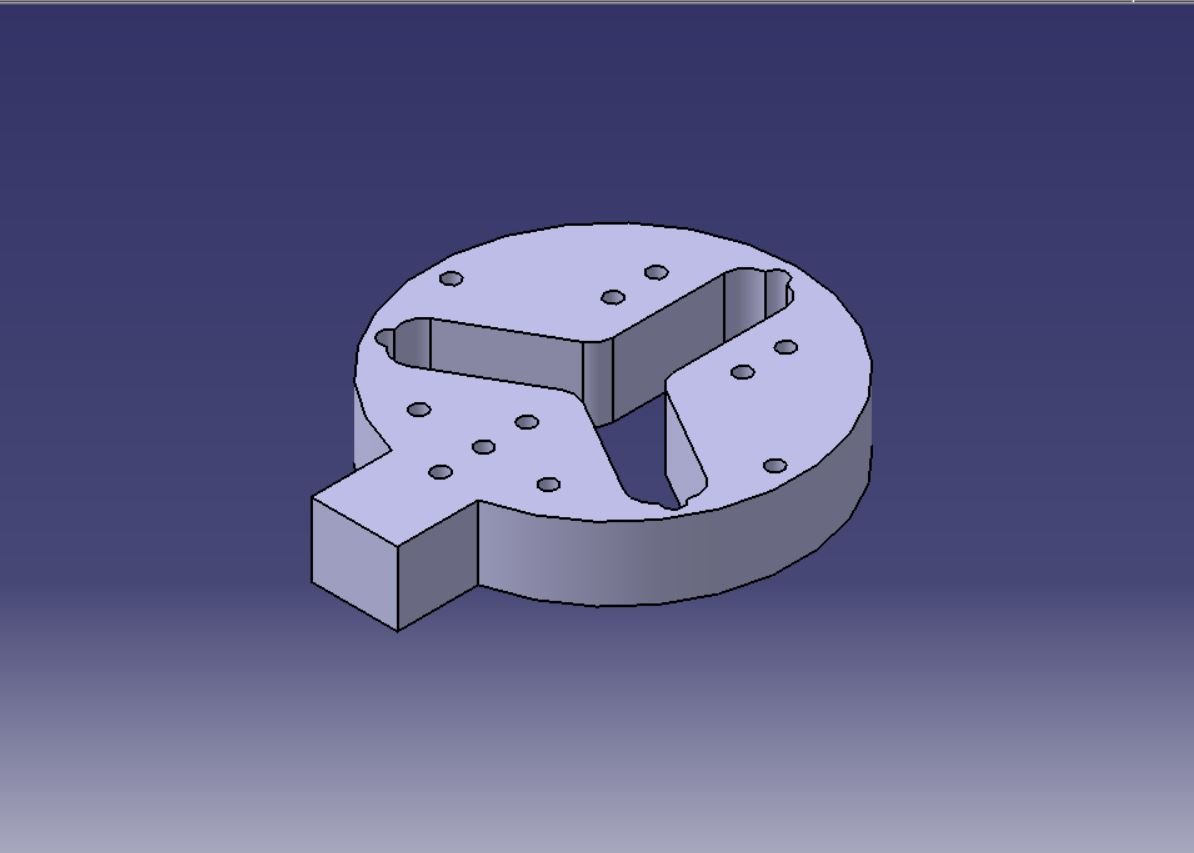

3D modeled Welder Arm in CATIA V5. It is made up of 11 different parts, some of which are standard catalogue parts. The design incorporates a two prong welder tip that is easily positioned using the movable base. The arm is able to rotate around the vertical axis as well as translate in the vertical axis.
Software
CATIA
Categories
CAD
Keywords
catia
welding
welder arm
tool
modelling
cad
×
The CAD files and renderings posted to this website are created, uploaded and managed by third-party community members. This content and associated text is in no way sponsored by or affiliated with any company, organization, or real-world good that it may purport to portray.
Welder Arm
