Details

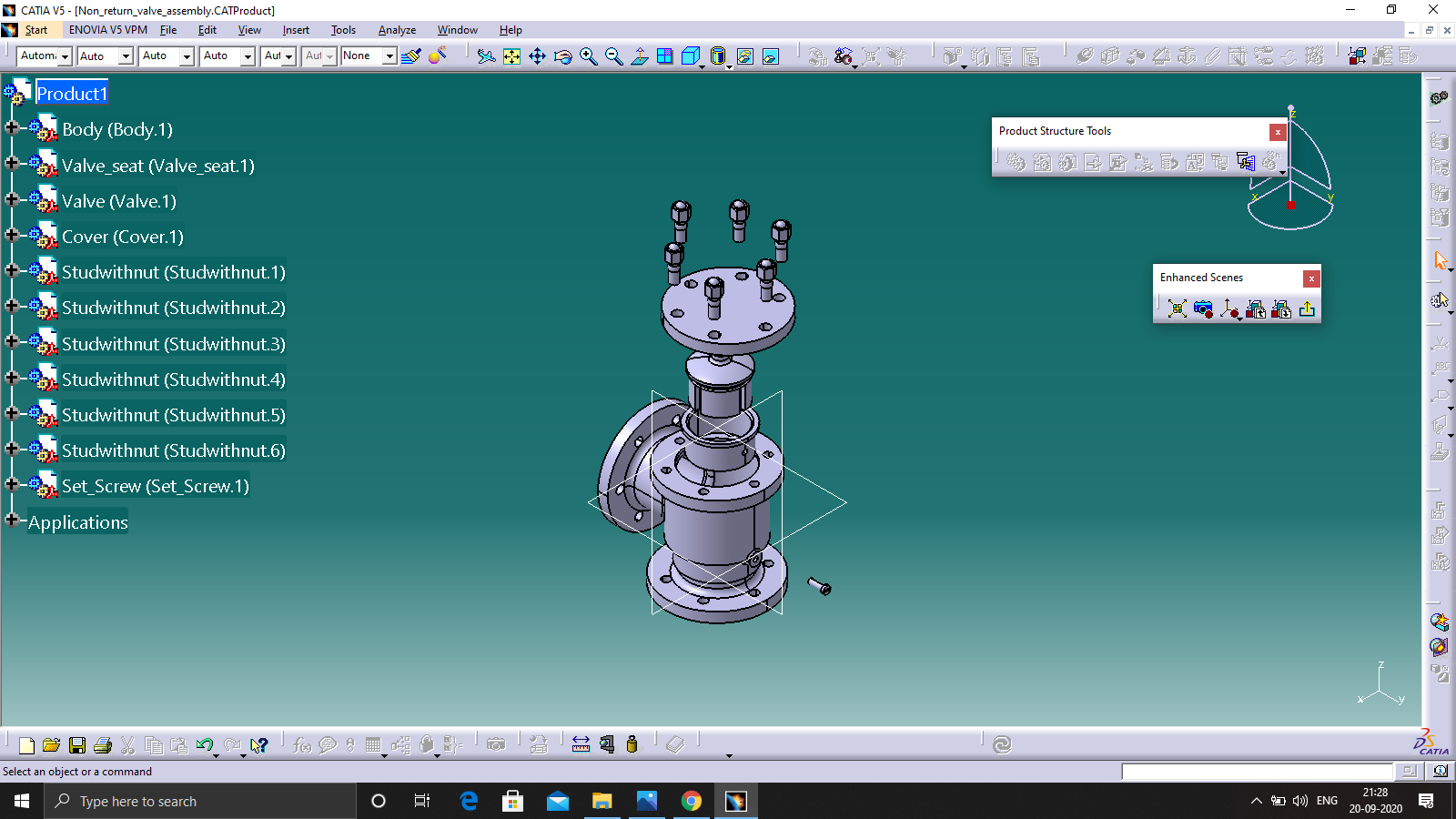

Assembly and details of Non Return Valve done in Catia V5. All files are shared including detailed drawing. Hope this is helpful. Do comment for any suggestions. Still grinding up my skills.
Software
CATIA
Categories
Components
Design
Keywords
CATIA v5
Model
Non Return Valve
×
