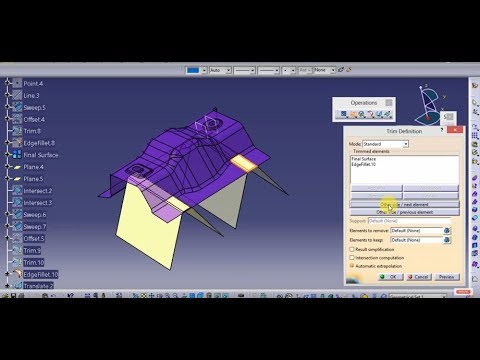

Video Describes BIW Part Design In Catia V5
Part is completely Design in Generative Shape Design Work Bench with advanced GSD Tools.
As BIW Component Are Done by stamping, stamping Features like locators , Embosses, Bird Beaks, Flutes etc.
These Features added in order to Increase the Strength of sheet metal Part.
Need to consider Manufacturing feasibility Points also while designing.
.Video is helpful for Automotive product design Engineers.
Software
CATIA
Categories
CAD
Design
Surfacing
Keywords
Sheet metal part design
catia
BIW
GSD
SURFACE Design
