Details

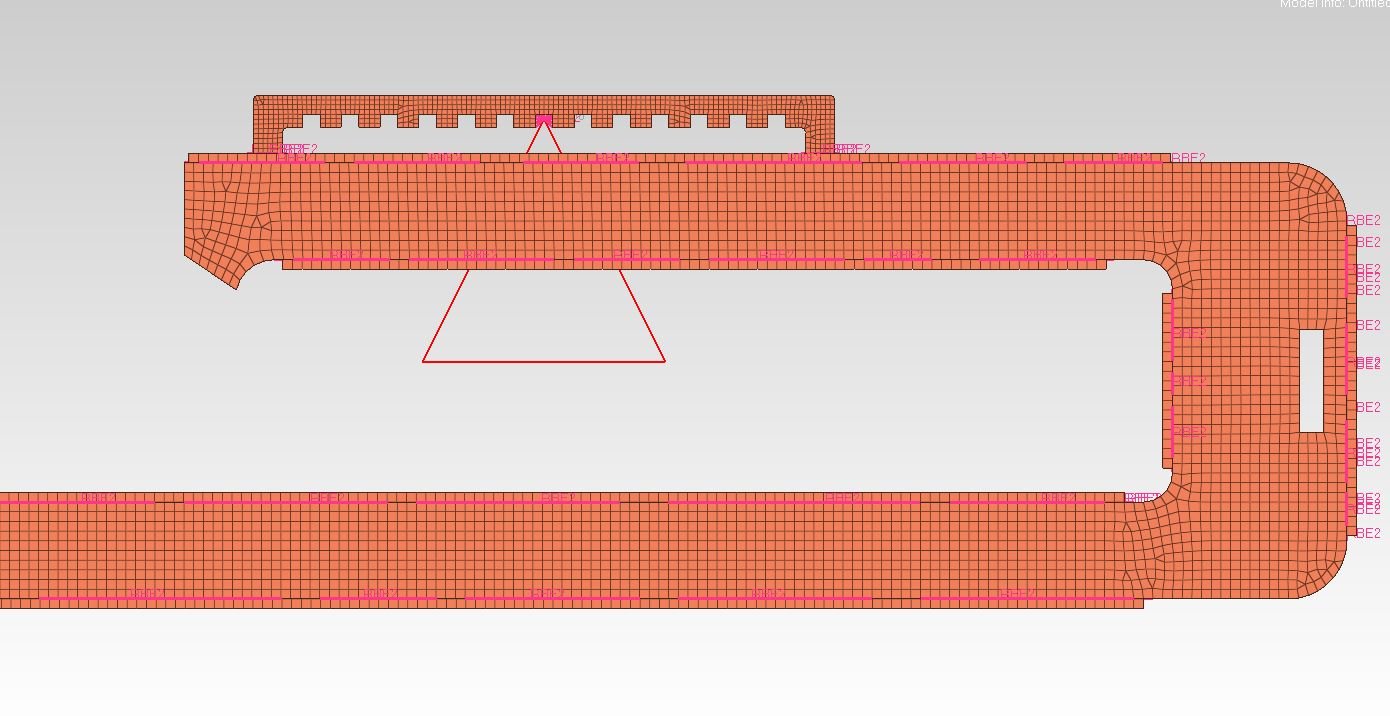

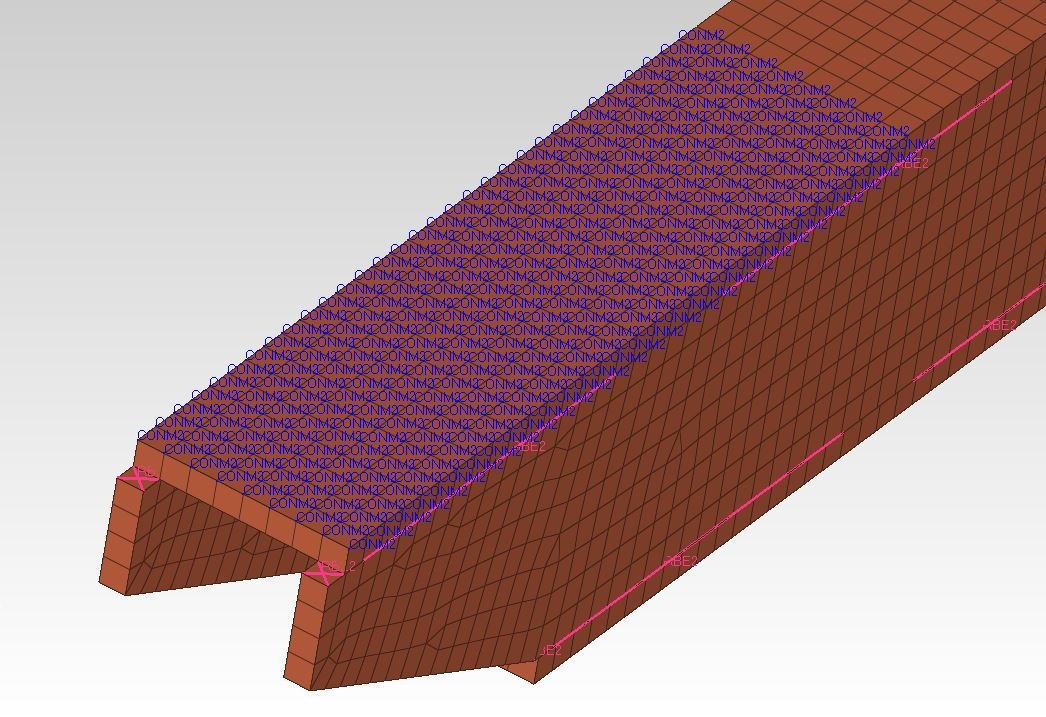

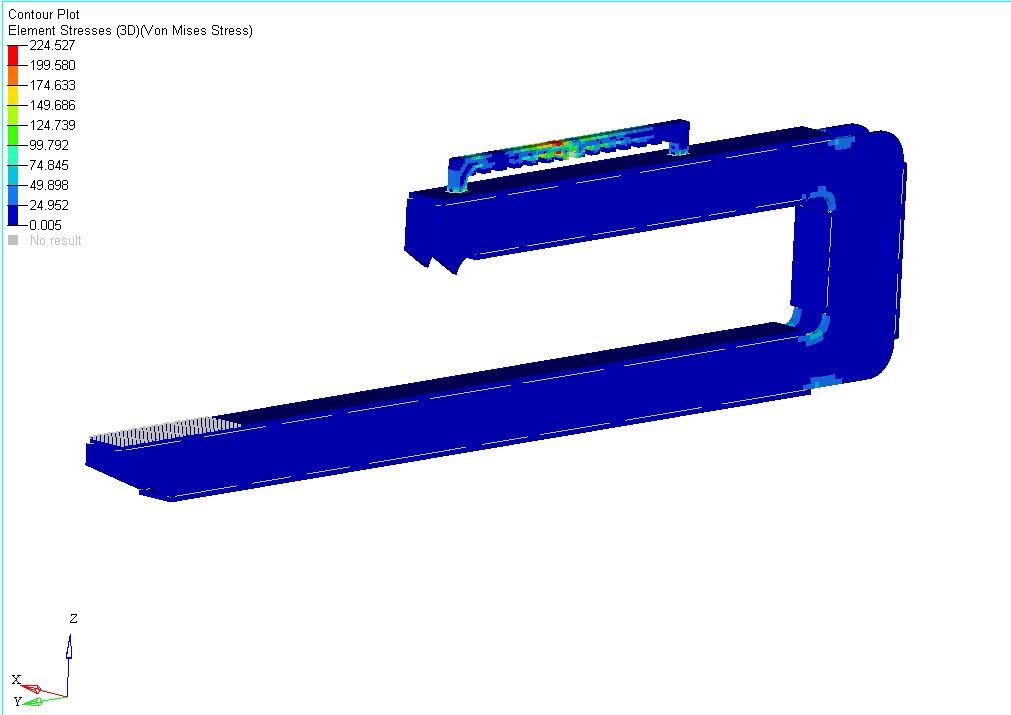

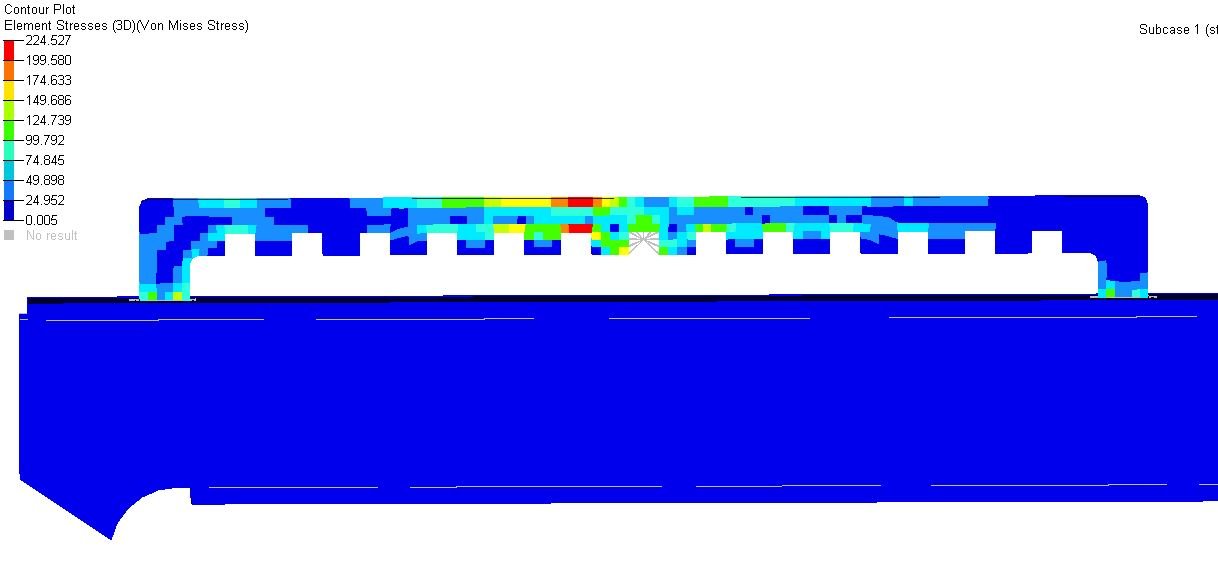

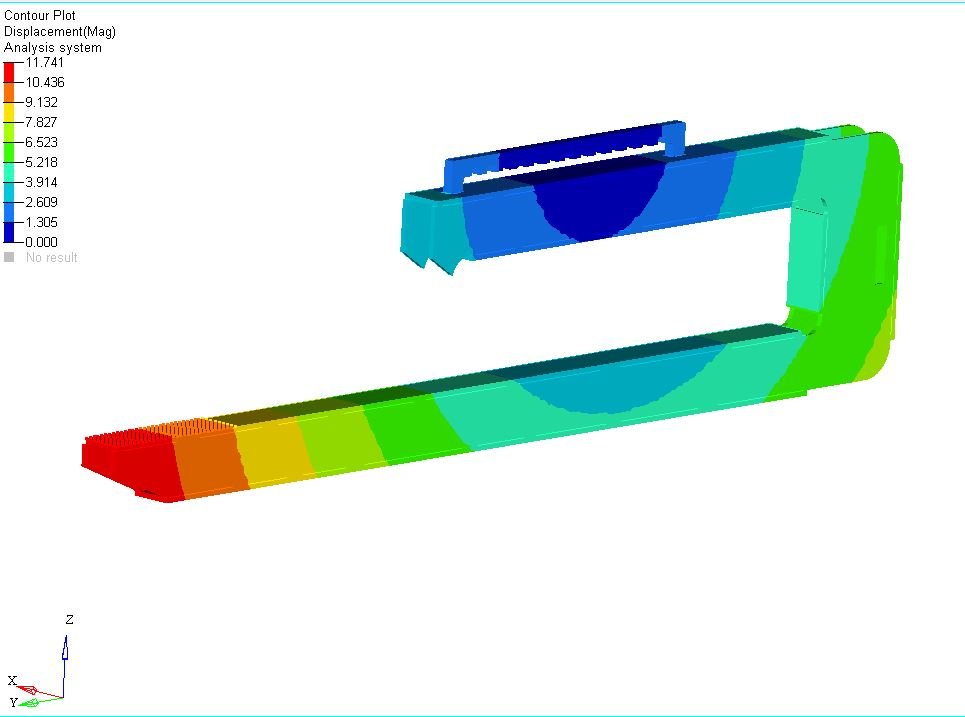

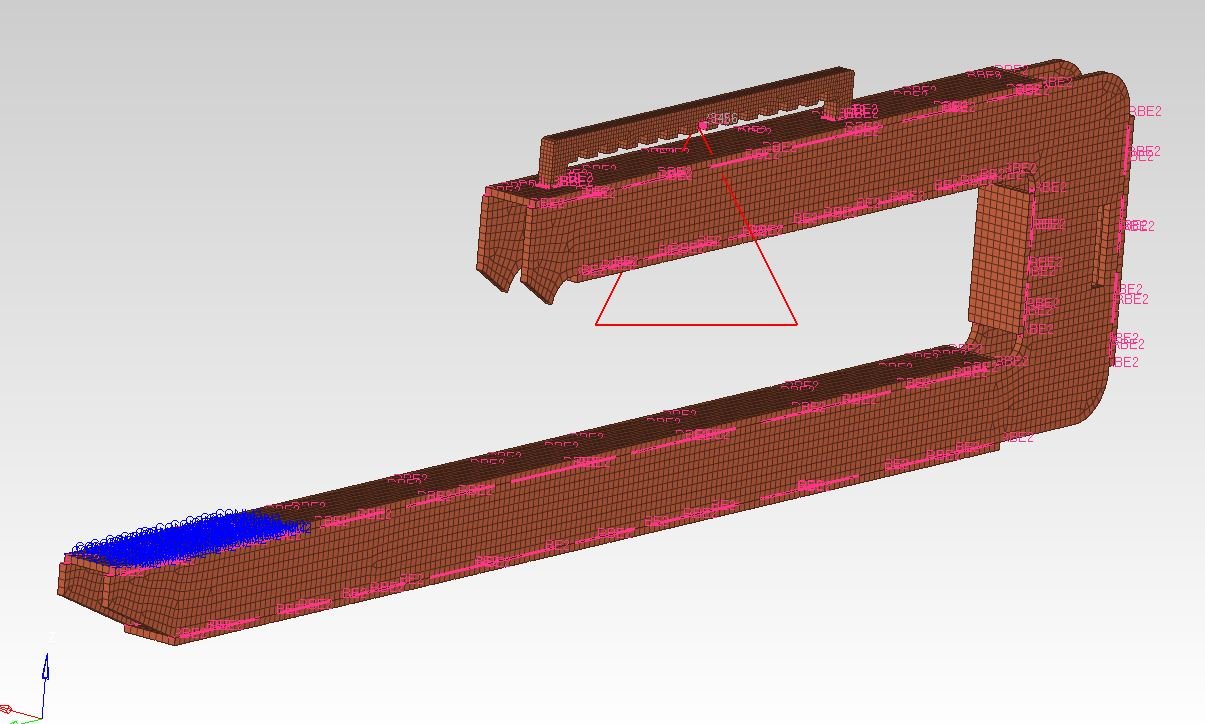

Cad model source Somesh kardiguddi profile , source is DesignGyan FE model generated from CAD in Hypermesh optistruct solver used for meshing (preprocessing ) and to run the analysis ( processing) and results are viewed in hyperview ( post processing) 2D and 3D meshing is been done and connection between components is done by rigid 1D elements ( RBE2 elements) Loading region and boundary condition is shown in the images as well as details are given in the report . Maximum load this tackle can lift is 80 kg ,results and cae files are added for you reference , leave a like , Thank you
Software
Hypermesh
Optistruct
STEP
Categories
CAE
Material handling system
Strength Analysis
Keywords
concrete
tackle
linearstatic
stengthanalysis
×
The CAD files and renderings posted to this website are created, uploaded and managed by third-party community members. This content and associated text is in no way sponsored by or affiliated with any company, organization, or real-world good that it may purport to portray.
Maximum load carrying capacity of Concrete lifting tackle
