Details

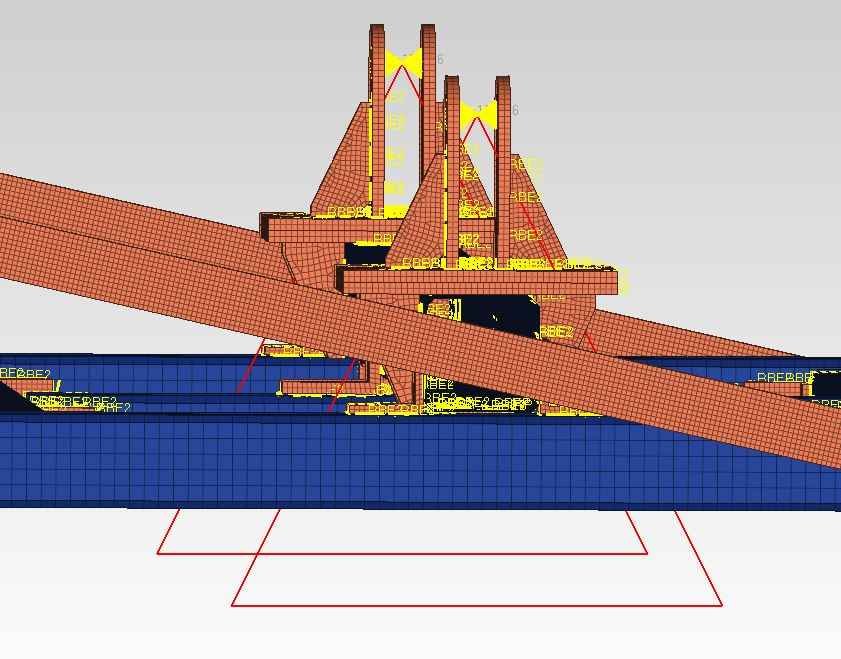

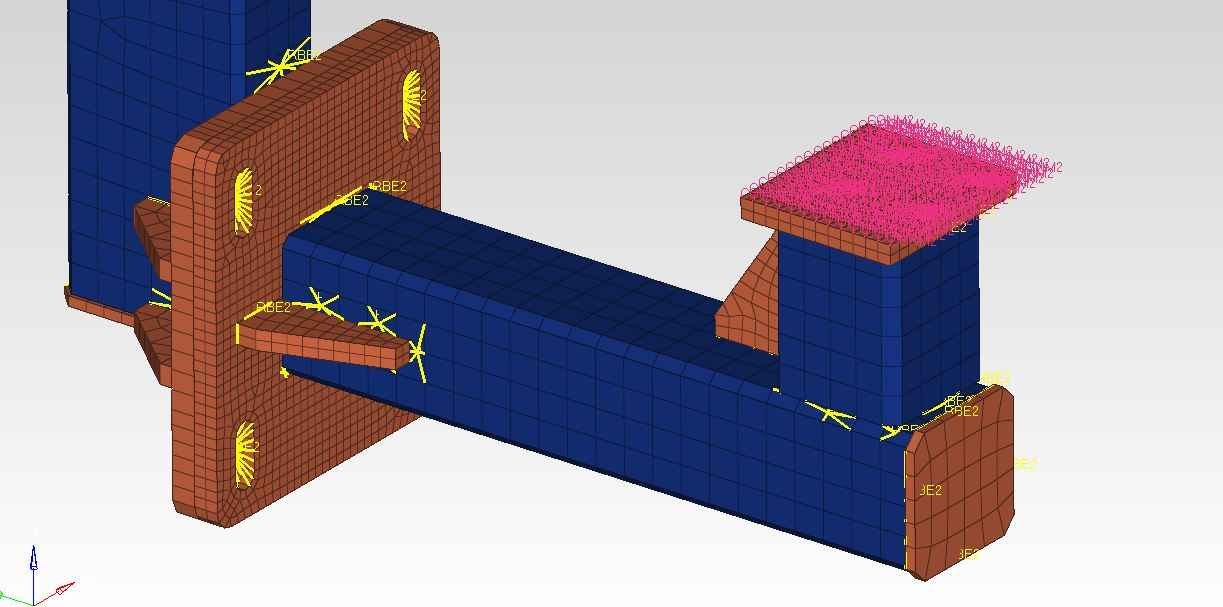

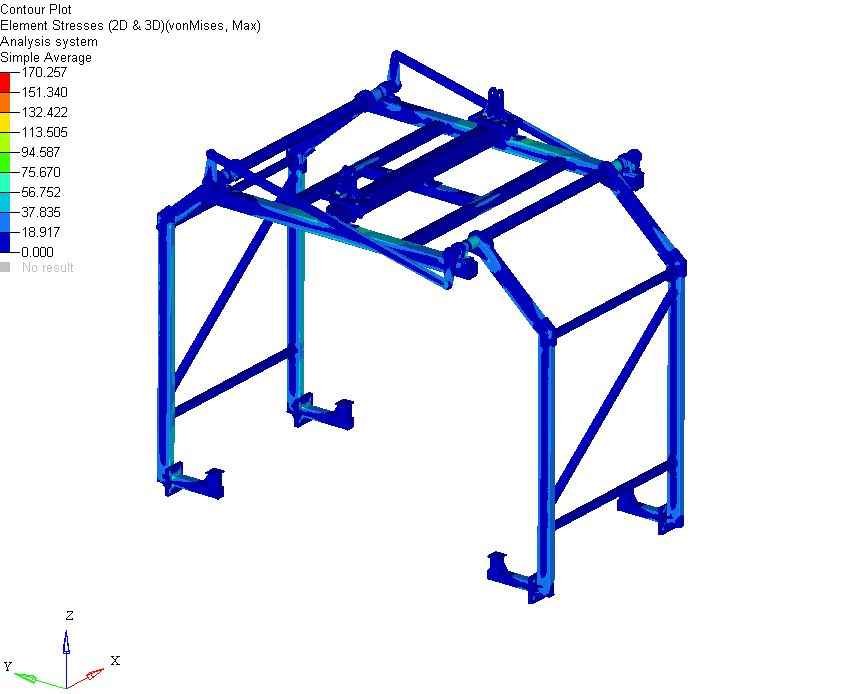

Cad source : Designgyan models module 2D and 3D mesh done in optistruct solver The deflections is 9.88 mm and the stress value is 170 MPa and is within allowable limits. The Maximum Load carrying capacity of Hanger is 1500 Kg. k y
Software
Hypermesh
Categories
Auto components
Automobile
Software related
Keywords
hanger strength analysis hypermesh
×
The CAD files and renderings posted to this website are created, uploaded and managed by third-party community members. This content and associated text is in no way sponsored by or affiliated with any company, organization, or real-world good that it may purport to portray.
Strength Analysis of BIW Body Career
