Details

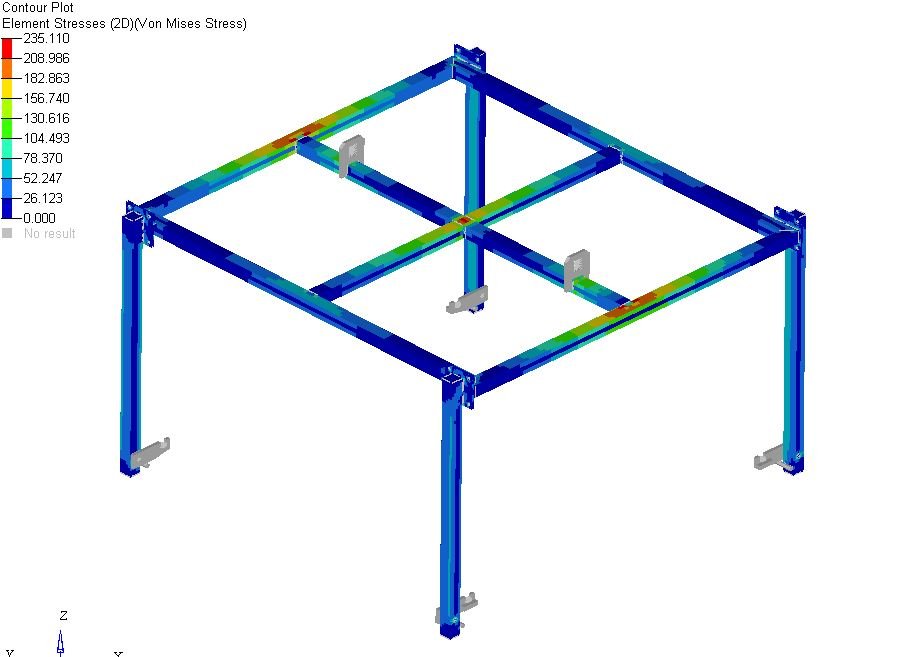

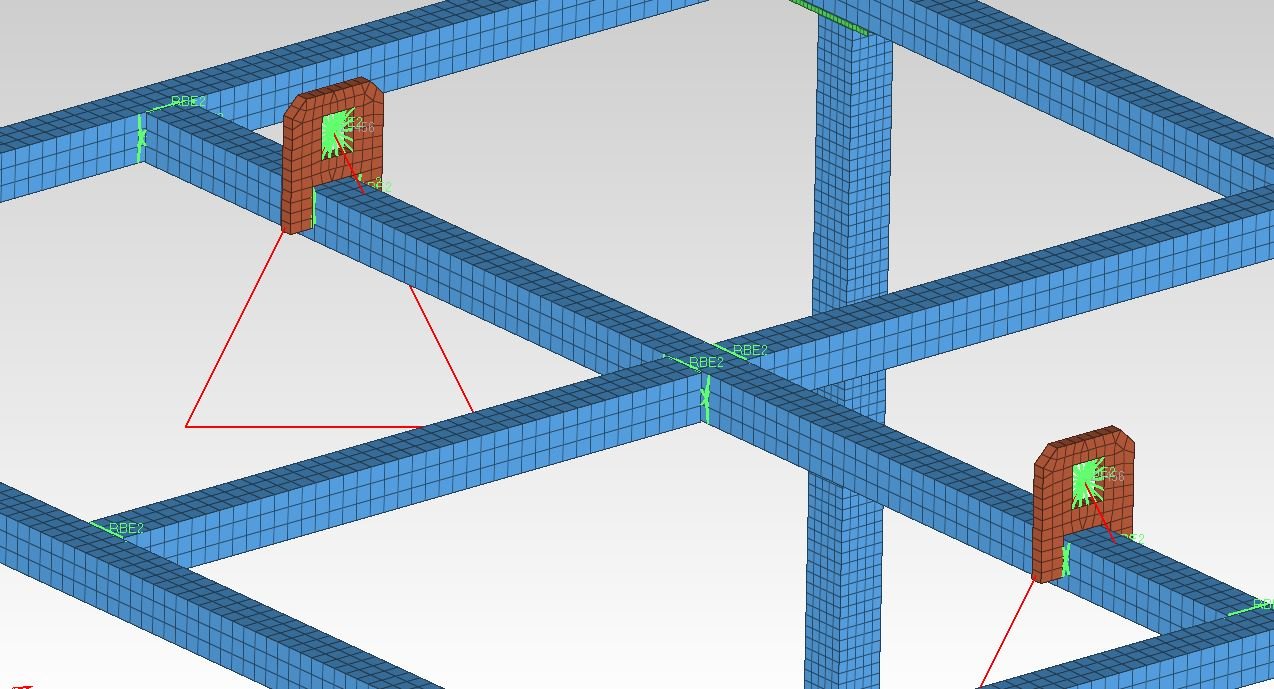

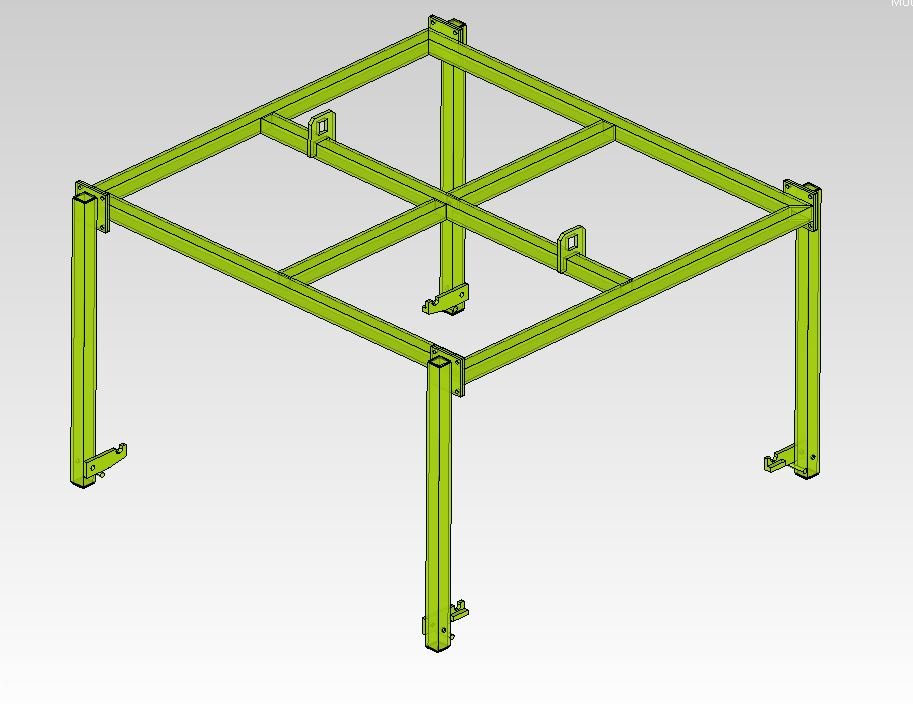

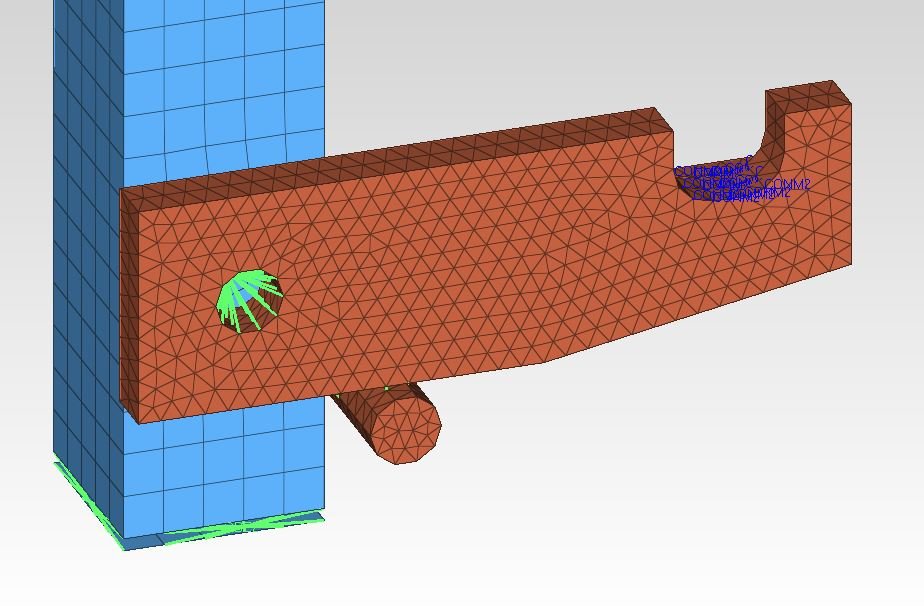

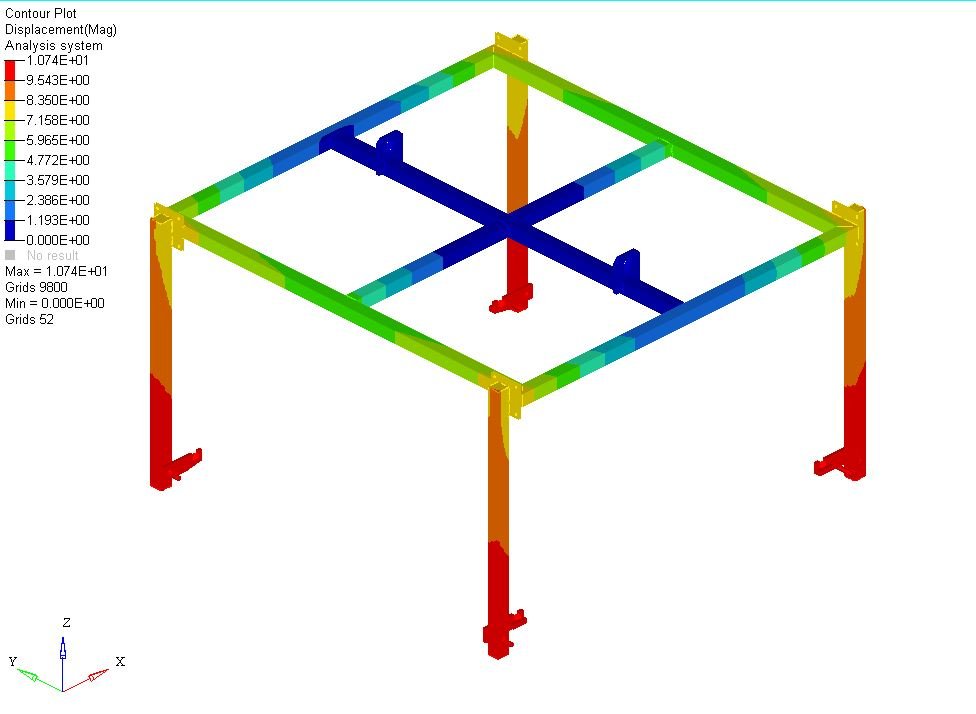

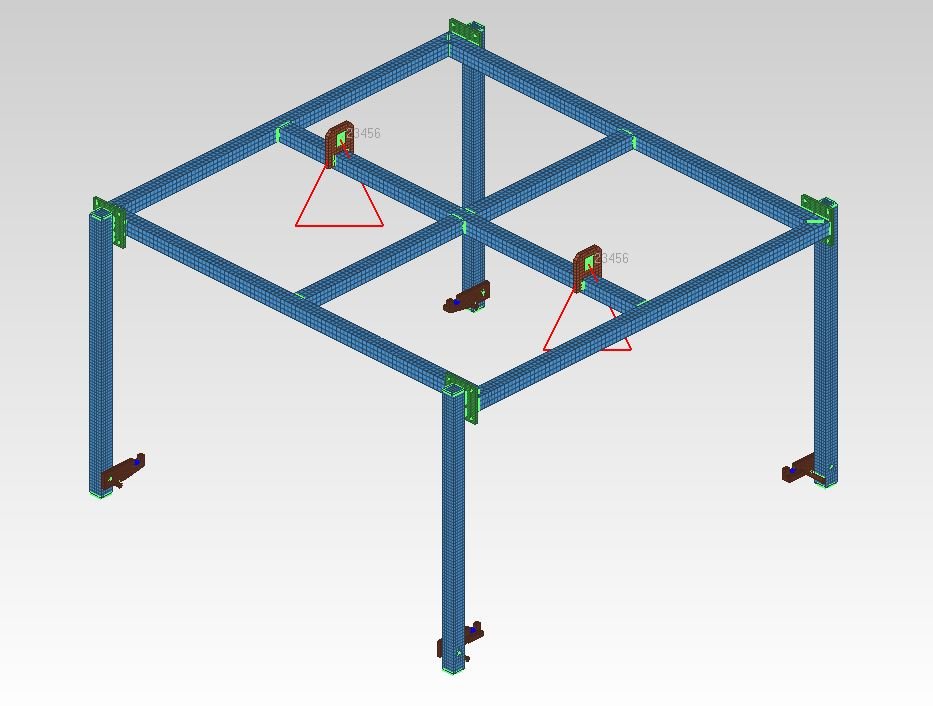

Cad model source Somesh kardiguddi profile , source is DesignGyan FE model generated from CAD in Hypermesh Nastran solver used for meshing (preprocessing ) and optistruct solver used to run the analysis ( processing) and results are viewed in hyperview ( post processing) 2D and 3D meshing is been done and connection between components is done by rigid 1D elements ( RBE2 elements) Loading region and boundary condition is shown in the images as well as details are given in the report . Maximum load this tackle can lift is 2.3 Ton ,results and cae files are added for you reference , leave a like , Thank you

Software

Hypermesh
Nastran
Optistruct

Categories

CAE
Material handling system
Strength Analysis

Keywords

doorlifting
liftingtackle
hanger
structure
spmequipments
heavyengineering
liftinghooks
