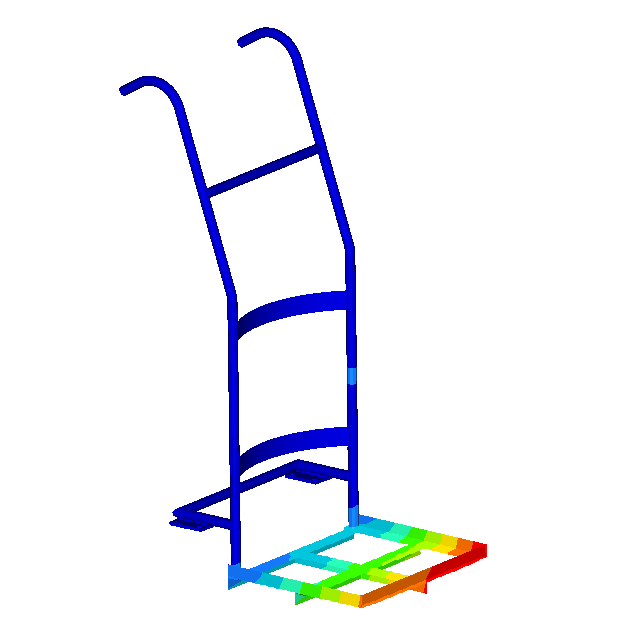

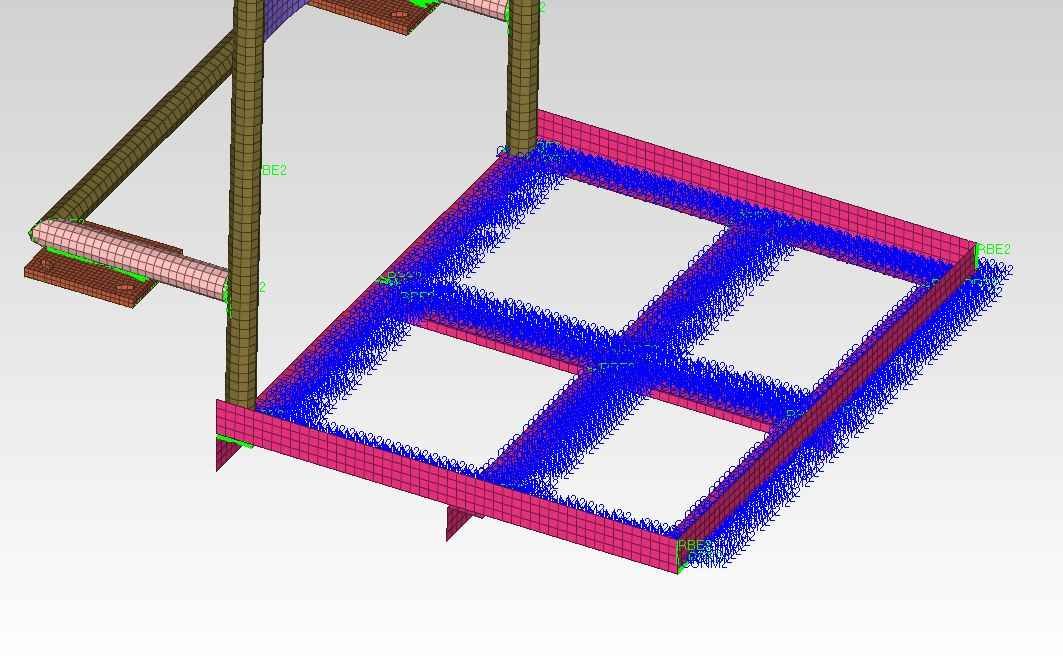

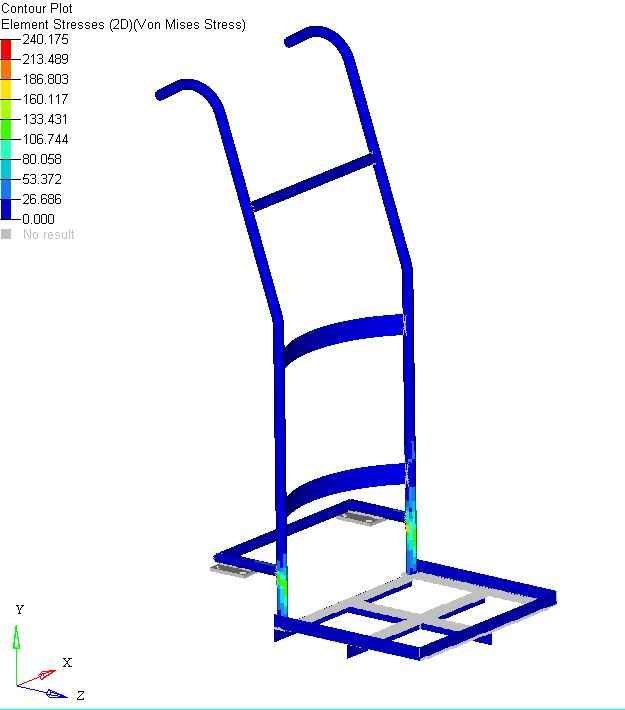

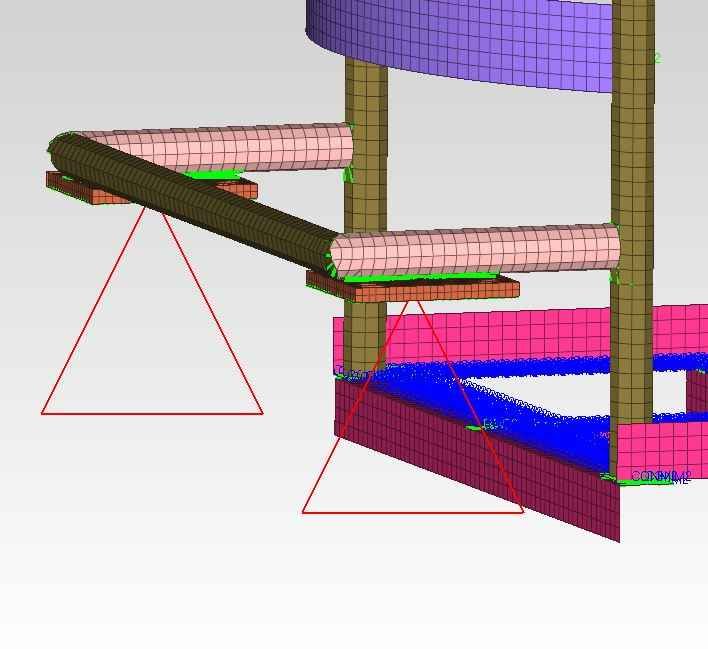

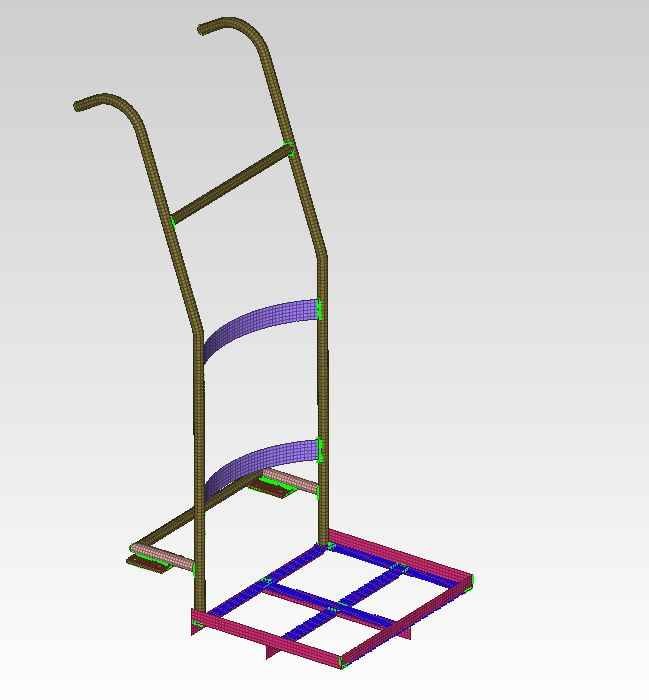

Cad model source Abhishek devanal profile , source is DesignGyan FE model generated from CAD in Hypermesh optistruct used for meshing (preprocessing) and used to run the analysis ( processing) and results are viewed in hyperview ( post processing) 2D and 3D meshing is been done and connection between components is done by rigid 1D elements ( RBE2 elements) Loading region and boundary condition is shown in the images as well as details are given in the report The equipment shown illustrates the barrel/Drum moving trolley. This type of trolley’s are used in the industries as per the requirement to move the heavy barrels/drums from one location to the other
